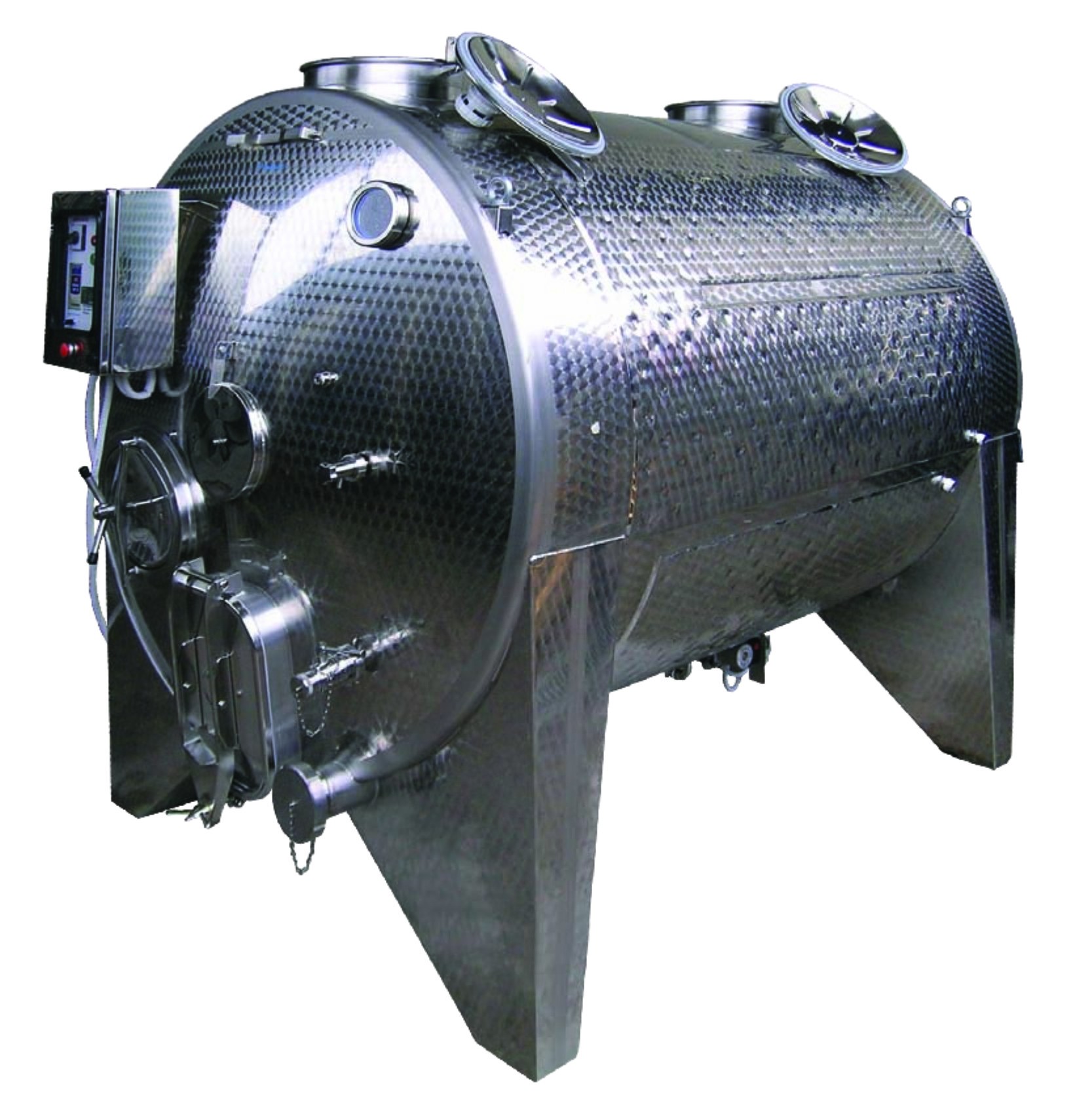

Horizontal fermenter

A horizontal fermenter is mainly used for the maceration of red grapes. It is made of stainless steel W.Nr. BA 1.4301 (AISI 304-V2A). Its characteristic is and inner agitator, driven by an electric motor with reduction gear placed on the back side. On the control box can be set speed, direction and time of rotation of inner agitator. The agitator is composed of uniformly distributed blades, whose shape and slow rotation will not damage skin grape. After the maceration the grape skins are emptied through the front door. Because of its shape (height) can be placed in the lower areas. A horizontal fermenter can be also used for wine-storage. In addition to the basic equipment to the customer equipment fermenter with a wide range of accessories.

Material:
W.Nr. 1.4301 BA (AISI 304 – V2A)

Surface:
Outside marble finish and inside llld polished

Standard equipment:

  • 4 legs 300 mm, back regulated
  • Drain port: connection 3″ with ball valve 3″ – 3″
  • Racking port: connection 5/4″ with ball valve 5/4″-5/4″
  • Sampling valve DN20
  • Digital thermometer with tube ½”
  • Top Manway D400 mm with pressure relief valve DN50
  • Rectangular manwaydoor 310 x 420 mm – up to D1592 mm
  • Rectangular manwaydoor 555 x 432 mm – from D1751 mm
  • Electric motor with reduction gear with rotation 0 – 6 minˉ¹, direction of rotation left or right
  • Inner agitator with blades
  • Control box for seting speed, direction and time of rotation of inner agitator
  • Cooling jacket (30% of jacket) with connections ¾”
  • Heating jacket on the bottom with connections ¾”
  • Ladder hook

Options:

  • Additional oval manway 440 x 310 mm – welded frame
  • Additional Top Manway D400 mm
  • Heater 3KW with thermostat and flow pump
  • Sight glass DN100 for control

Capacity

Article Volume Lt D mm G mm Z mm L mm Nr.blades F mm
LRM0301 3.200 1433 2000 1950 2700 6 300
LRM0302 4.000 1592 2000 2150 2700 6 300
LRM0303 5.000 1592 2500 2150 3200 7 300
LRM0304 4.800 1751 2000 2300 2700 6 300
LRM0305 6.000 1751 2500 2300 3200 7 300
LRM0306 7.200 1910 2500 2450 3200 7 300
LRM0307 8.600 1910 3000 2450 3700 8 300
LRM0308 8.400 2070 2500 2600 3200 7 300
LRM0309 10.000 2070 3000 2600 3700 8 300
LRM0310 9.700 2229 2500 2750 3200 7 300
LRM0311 11.700 2229 3000 2750 3700 8 300
LRM0312 13.500 2388 3000 2950 3700 8 300
